SOMDAS China manufacturer copper liquid line filter drier

FOB Price:

US 0.1-5 / Piece

Min.Order Quantity:

1 Piece/Pieces

Supply Ability:

100000000 Piece/Pieces per Year

Port:

Ningbo/Shanghai,etc

Place of Origin:

Zhejiang, China (Mainland)

Payment Terms:

L/C,T/T,Western Union,Paypal

Brand:

SOMDAS

Products Model:

liquid line filter drier

Products Details
Company Profile

Quick Details

Brand Name: SOMDAS

Model Number: liquid line filter drier

Place of Origin: Zhejiang, China (Mainland)
Type: Filter Drier
Application: Refrigeration Parts
Certification: RoHS
Product: Cu-DHP
Body Shell: 100% XH-9
Molecular Sieves: 200 mesh
Screen: Compatible with all refrigerants
Avilability: 5-20g: 0.40mm
Wall Thickness: Sealed with plastic cap/plug
Ends: 6.5mm
Inlet: 2.5mm

Packaging & Delivery

Packaging Details: liquid line filter drier packed in Polybag / Aluminum foil / Head card
Delivery Detail: 7-35days

Specifications

Company Information

SOMDAS , founded in 2000,is the largest manufacturer in China for copper filtter drier, copper

accumulator, copper strainer and access valve,etc. 2013, SOMDAS has become a joint

venture controlled by both SOMDAS and ICEAGE, with experienced sales force, aiming at providing

better service and products control for clients.

Annual output

100 million pieces

Certifications

Quantity Management ISO 9001:2000
Enviromental Management ISO 4001:2004 & Rohs
Occupation Health and Safety Management GB/T 28001-201

Product Description

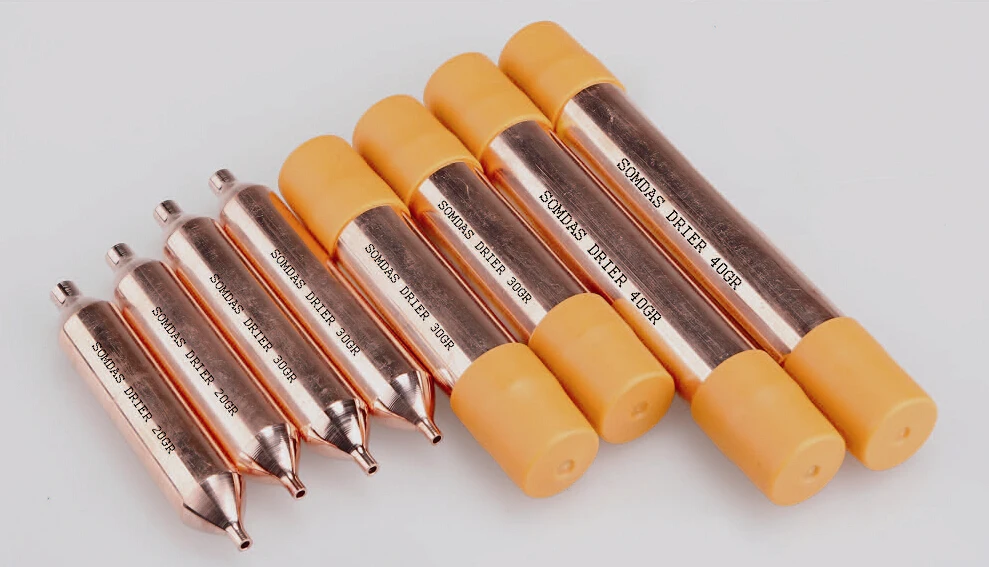

SOMDAS copper filter driers are designed to absorb moisture and acid , and to filter out impurities.

Normally be installed as component and replaced as repair part for both domestic and commercial

refrigerators, freezers,etc.

Specification - Standard Filter drier

Body Shell	Cu-DHP
Molecular Sieves	100% XH-9
Screen	200 mesh
Available	Compatible with all refrigerants
Wall thickness	5-20G: 0.4mm; >20G: 0.5mm
Connection	Welded extension copper capillary
Extended capillary length	6.5mm
Inlet/Outlet	2.5mm

Note: all sizes are SOMDAS standard, other size can be made on request.

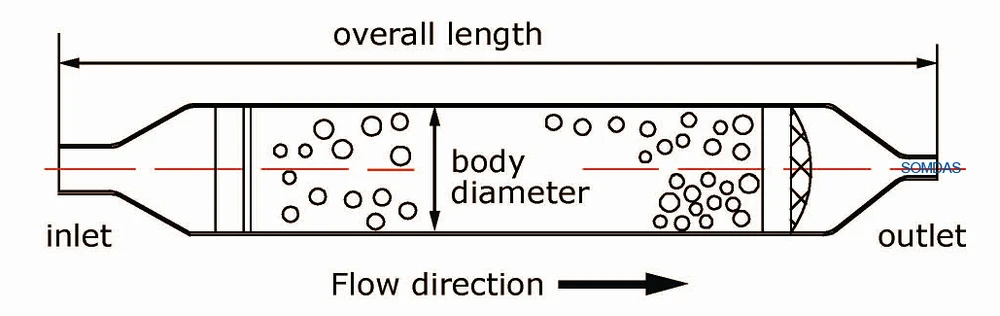

Model	Molecular Sieves +5%, -0%	Body Diameter ±0.10mm	Body Length ±2mm	Screen Depth ±2mm
SD05-010	5g	16	80	24
SD07-010	7g	16	90	24
SD10A-010	10g	16	115	24
SD10B-010	10g	19	100	26
SD12-010	12g	19	105	26
SD13-010	13g	19	110	26
SD15-010	15g	19	115	26
SD18-010	18g	19	128	26
SD20A-010	20g	19	141	26
SD20B-010	20g	24	120	28
SD25-010	25g	24	125	28
SD30-010	30g	24	140	28
SD35-010	35g	24	155	28
SD40-010	40g	24	170	28
SD50-010	50g	29	160	30

Packaging & Shipping

All cardboard boxes are stacked on wooden pallets and fitted with straps beforehand to make it

easier to carry during transport. The stacked boxes are then wrapped in plastic film and held taut in

order to provide stability are protect against contamination and damage when force is applied.

Related Products

FAQ

Question 1: What products do you have?

Answer: We have Copper filter drier, Access valve, Copper strainer, Accumulator

Question 2: Are you a manufacturer?

Answer: Yes, we are manufacturer with 15 years experience

Question 3: Free sample will be available?

Answer: Yes, we can supply

Question 4: What certificate do you have?

Answer: We have ROHS, ISO9001, ISO14000
