CBB61 50/60Hz fan capacitor applied in ac conditioner

FOB Price:

US 0.1-3 / Piece

Min.Order Quantity:

1000 Piece/Pieces

Supply Ability:

10000 Piece/Pieces per Day

Port:

Ningbo,Shanghai,etc

Place of Origin:

Zhejiang, China (Mainland)

Payment Terms:

L/C,T/T,Western Union,Paypal

Brand:

ICEAGE for capacitor

Products Model:

CBB61 capacitor

Products Details
Company Profile

Quick Details

Brand Name: ICEAGE for capacitor

Model Number: CBB61 capacitor

Place of Origin: Zhejiang, China (Mainland)
Type: Polypropylene Film Capacitor
Application: AC / Motor
Package Type: Through Hole
Capacitance: 1-24μF
Rated Voltage: 250vac-500vac
Operating Temperature: -40~70°C
Frequency: 50/60hz

Packaging & Delivery

Packaging Details: standard export package
Delivery Detail: 7-35 days

Specifications

Product Description

CBB61 50/60Hz fan capacitor applied in ac conditioner

Detailed information

Structure : Cuboid,flame-retardant plastic case.with tap or line outleads ,fully filled with resin
Features: low loss,stable capacitance,good insulation,reliable quality,long life,anti-striking current,strong over-carrying capability etc.
Main use: Applied 50/60HZ AC motor for starting and running,such as air conditioner fan,electric fan,ventilator fan,boostar fan aic.

Standard	UL810; GB/T3667.1-2005; IEC60252-1:2001
Capacitance range	1µF to 24 µF
Capacitance deviation	±5% or according to customers' requests
Rated Voltage	250VAC, 450VAC, 500VAC
Rated Frequency	50/60Hz
Operating Temperature	-40°c to +70°c
Class of safety protection	P0
Tangent of loss angle	tanσ≤0.002(100Hz)
Testing Voltage	T-T: 2.0Un/60S
Size	Refer to our design or produce according to customers' requests

Capacitance	Dimension-Width x Thickness x Height (mm)
uF	370VAC-400VAC	450VAC
1	32x14x25	32x14x25
1.2	32x14x25	32x14x25
1.5	38x14x26	38x14x26
2	38x14x26	38x14x26
2.5	38x18x30	38x18x30
3	38x18x30	38x18x30
3.5	38x18x30	38x18x30
4	48x18x34	48x18x34
5	48x18x34	48x18x34
6	48x18x34	48x18x34
8	47x26x38	47x26x38
10	47x26x38	47x26x38
20	62.5x28x45	62.5x28x45

Remarks:A=length,B=width,H=height

*If the item you are looking for is not listed above, please feel free to contact us for more details.

Company Information

We are one of the leading wholesaler of products in the field of Refrigeration,Air Conditioning,Ventilation and Heating in China for more than 10 years,as well as a supplier assessed by Bureau Veritas.,devoting to provide “one-stop“service in the HVAC&R industry for our esteemed client.

What we supply

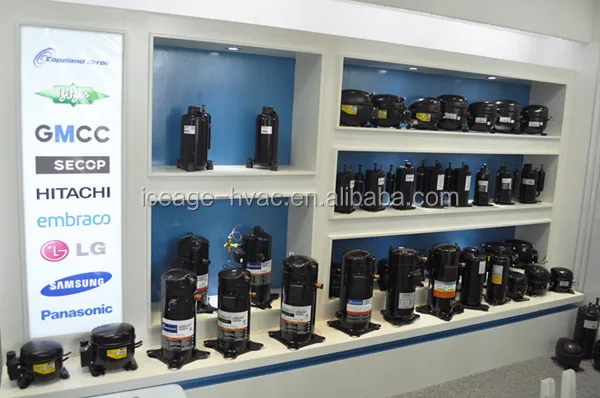

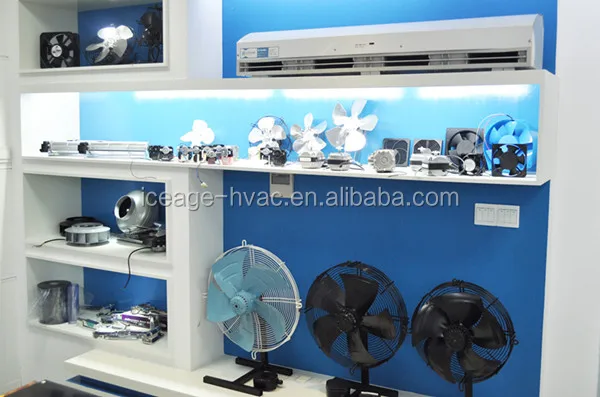

Our sample room
