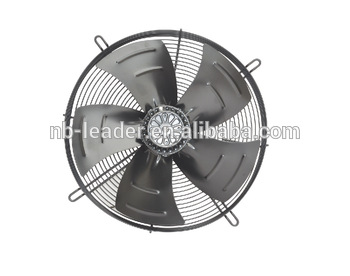

Suction 380V 400mm axial fan motor for condenser YWF-4D-400-Z

Price:

USD 10.00-50.00 / Piece

Min.Order Quantity:

100 Piece/Pieces

Supply Ability:

10000 Piece/Pieces per Month

Port:

FOBNINGBO/SHANGHAI

Place of Origin:

Payment Terms:

Brand:

Products Model:

Products Details
Company Profile

Quick Details

Type: Axial Flow Fan
Electric Current Type: AC
Blade Material: Stainless Steel
Voltage: 380V
Certification: CCC, CE, UL
Warranty: 1 YEAR
After-sales Service Provided: Online support, No overseas service provided
frequency: 50HZ
current: 0.48A
Application: Condenser

Packaging & Delivery

Packaging Details: Packing with the standard carton for export , export carton , 51*51*24cm, 1pc/ctn. Wooden pallet or paper pallet for logistics
Delivery Detail: --

Specifications

AXIAL FAN - YWF(K)4D400-Z
(Sucking,380V,50Hz,190W,0.48A, 3900M3/H,1380R/MIN,67dBA)

This Fans we have single-phase capacitor running and three-phase asynchronous running.

Single-phase motor has 220V/50HZ and 220V/60HZ. Three-phase motor has 380V/50HZ and 380V/60HZ.

At the same time can provide customers with motors of the special requirements: special voltage, dual voltage and so on, please contact for more details if needed.

And the line fan motor can be directly leaded out, and can provide various forms of water-proof junction box for the user’s selection

axial fan
1.material:galvanized sheet steel
2.type of protection: IP54
3.approvals:CCC,CE,RoHS

Allowable Ambient Temperature Range: -25~ +70 Centigrade degree

(Under unconcretionary)

Dielectric withstanding voltage: AC 1800V at 0.5mA, 50/60HZ
Insultaion Isolation Grade: B
Unit Weight: 6.1Kg

Material:

Fixed guard: Steel wire is finished with black oven backed painting and anti-corrosion treatment.
Impeller: pressed from metal armor plate, impellers are welded to motor rotor and its surface is anti-corrosion, finished by electrophoresis at black cathode.
Bearing Type: Maintain-free NSK ball bearing.
Power Supply Connection: Wire connection or terminal box set.

Contact with us for more details of specification
