Home > Products > Refrigeration Fittings > Butterfly Valve

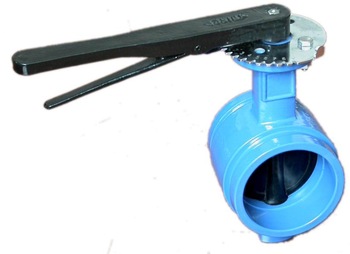

grooved ends butterfly valves

Price:

US 7-200 / Piece

Min.Order Quantity:

10 Piece/Pieces

Supply Ability:

20000 Piece/Pieces per Month

Port:

Shanghai

Place of Origin:

Payment Terms:

Brand:

Products Model:

Products Details
Company Profile

Quick Details

Standard or Nonstandard: Standard
Structure: Butterfly
Pressure: Medium Pressure
Power: Manual
Material: Casting
Temperature of Media: Medium Temperature
Media: Water
Port Size: DN40-DN300
Application: General, water, sea water, Gas, Oils
Disc type: Concentric
Body Material: Cast iron, ductile iron
Disc Material: Ductile iron covered rubber NBR or EPDM
Operator: Lever, worm gear, actuator
Painting: Epoxy powder coating

Packaging & Delivery

Packaging Details: plastic bag, carton box, wooden case
Delivery Detail: 4 containers per month

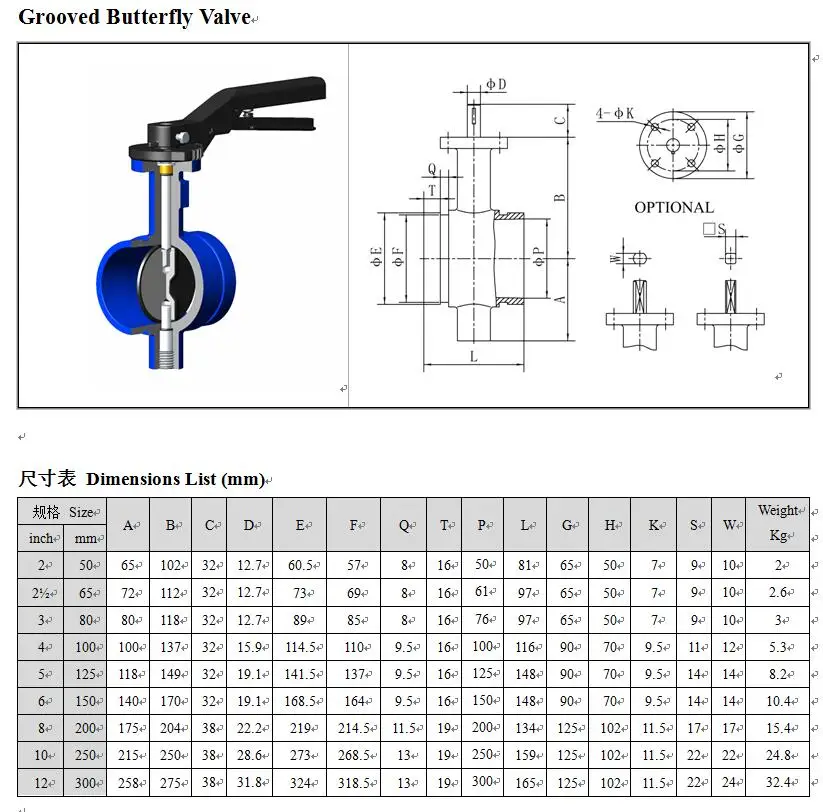

Specifications

Valves designed to comply with MSS SP-67

Face to face conform to MSS SP-67

Grooves conform to AWWA C606 TABLE 4

Part Name	Materials
Lever	Malleable Cast Iron
Body	Cast iron, Ductile iron
Disc	DI +Rubber(EPDM or NBR)
Stem	SS 410
Bushing	PTFE
O-Ring	NBR or EPDM
