Home > Products > Electric Power Distribution System > Generator Set

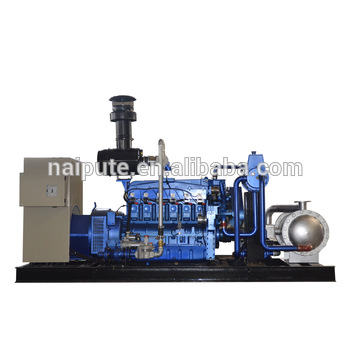

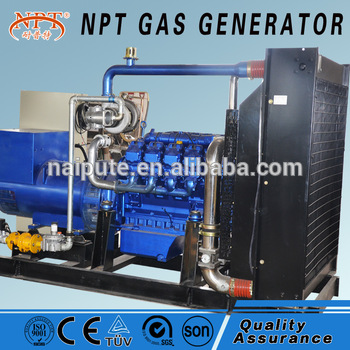

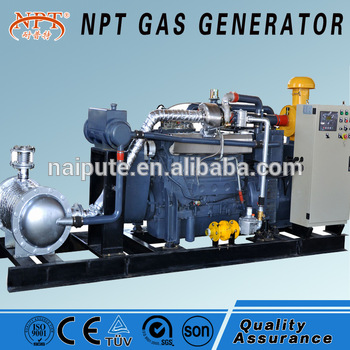

CE ISO approved 100kW bio gas electric generator

CE ISO approved 100kW bio gas electric generator

Price:

US 27000-28000 / Set

Min.Order Quantity:

1 Set/Sets

Supply Ability:

100 Set/Sets per Month

Port:

Qingdao

Place of Origin:

Shandong, China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Brand:

Naipute

Products Model:

100GFT bio gas generator

Products Details
Company Profile

Quick Details

Brand Name: Naipute

Model Number: 100GFT bio gas generator

Place of Origin: Shandong, China (Mainland)
Output Type: AC Three Phase
Speed: 1500/1800rpm
Frequency: 50HZ/60HZ
Rated Power: 100/125(kVA/kW)
Rated Voltage: 400/230V
Rated Current: 180A
Structure: integral
Exciting method: AVR Brushless
Rated Power Factor: 0.8 LAG bio gas generator
Overall dimension (L x W x H)(mm): 2850X1100X1800mm
Net weight (kg): 2150
Gas Engine Model: NW116D12NW116D12
Fuel Type: bio gas
Control panel: LCD display
Operation language: English
Alternator Model: XN274G

Packaging & Delivery

Packaging Details: bio gas generator packing : sea worthy package;special package as your requirement
Delivery Detail: 25days against 30% deposit received

Specifications

CE ISO approved 100kW bio gas electric generator

Product Description

1.Generator set parameter

Model	100GFT
Rated power	100kW/125kVA
Basics electric parameter	50/60Hz,3 p 4 w,440V/230V
Rated speed	1500/1800rpm
Power factor	Lag0.8
Insulation Class	H
Protection Class	IP23
Gross Weight	1680kg
*Dimension(LWH)*	*245012501750mm*

2.Engine parameter

Engine Model	ND119D12	Cylinder Qty	V6
Rated power	120kW	*BoreStroke**	132X145mm
Rated Speed	1500/1800rpm	Displacement	11.9L
Fuel gas intake pressure	2kPa--50kPa	Fuel gas type	Biogas
Engine Type	V type 4 stroke, electric control ignition, Pre-mixed stoichiometryburn

3.Alternator parameter

Brand	MBH( Germany)	Rated Frequency	50/60Hz
Model	XN274DS	Rated output	440V/230V
Rated Power	100kW/125kVA	Exciting Mode	Self-Excited,Brushless
Rated current	180A	Voltage Regulation	AVR

4.Genset Controller introduction
