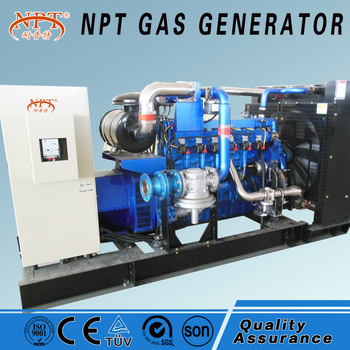

CE approved silent electric 120kw gas genset machine

CE approved silent electric 120kw gas genset machine

Price:

US 25000-28000 / Set

Min.Order Quantity:

1 Set/Sets

Supply Ability:

100 Set/Sets per Month

Port:

Qingdao

Place of Origin:

Shandong, China (Mainland)

Payment Terms:

L/C,T/T,Western Union

Brand:

NPT

Products Model:

120GFT

Products Details
Company Profile

Quick Details

Brand Name: NPT

Model Number: 120GFT

Place of Origin: Shandong, China (Mainland)
Output Type: AC Three Phase
Speed: 1500/1800 rpm
Frequency: 50/60 Hz
Rated Power: 120kW
Rated Voltage: 440V/230V
Rated Current: 216A
Product name: CE approved silent electric 120kw gas genset machine
Overall dimension (L x W x H)(mm): 2850*1000*1750mm
Gross Weight: 1950kg
Fuel type: LPG
Rated power: 120kW/150kVA
Alternator: MBH( Germany)
Basics electric parameter: 50/60Hz,3 p 4 w,440V/230V
Engine model: NC83D14TL
Certificate: ISO | CE
Warranty: 1 Year

Packaging & Delivery

Packaging Details: 1 Piece /plywood cases or simple packing
Delivery Detail: 25 days after 30% deposit received

Specifications

Product Description

LPG Fuel Generators

LPG generators are becoming increasingly popular due to their reduced running costs, as well as being less harmful to the environment, compared to petrol and diesel models.

Product name	CE approved silent electric 120kw gas genset machine
Model	120GFT
Rated power	120kW/150kVA
Rated speed	1500/1800rpm
Power factor	Lag0.8
Protection Class	IP23
Gross Weight	1950kg
Dimension(LWH)	285010001750mm
Basics electric parameter	50/60Hz,3 p 4 w,440V/230V

LPG generators provide a better way to power your business. With significant fuel savings when compared to petrol and increased fuel performance meaning less servicing required. LPG generators will ensure that there’s less down time keeping your business running and your customers happy.

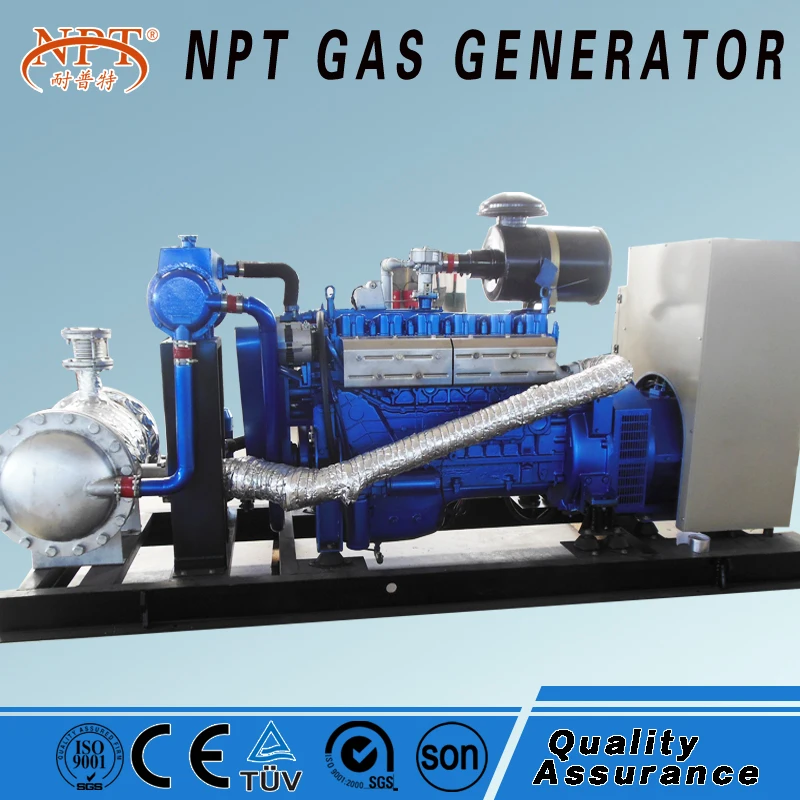

Detailed Images

Gas Engine
Model	NC83D14TL
Type	V type 4 stroke, electric control ignition,Pre-mixed stoichiometryburn
Rated power	140kW
Rated Speed	1500/1800rpm
Speed regulation	Electronic governor
Cylinder Qty	L6
Bore*Stroke	114*135mm
Displacement	8.3L
Fuel gas type	LPG
Fuel gas intake pressure	2kPa--50kPa

Control panel
L-L&L-N voltage	Speed and running hours
load current	Engine oil temperature
Frequency	Engine oil pressure
Load power	Coolant temperature

Alternator
Model	XN274FS
Brand	MBH( Germany)
Rated Power	120kW/150kVA
Rated current	216A
Rated Frequency	50/60Hz
Rated output	440V/230V
Exciting Mode	Self-Excited,Brushless
Voltage Regulation	AVR

CE Approved 500kW Natural gas generator set

95% Response Rate

400kW Gas Generator with CE and ISO

95% Response Rate

250kW Biogas power plant generator set

95% Response Rate

Other genset model

Our Service

Pre-sale

Provide specification parameter and consultants service,customized design optional.

After-sale

Installation guide and commissioning service .

Technical support and spare parts supplying.

Operation and maintenance manual.

Tracking

Regularly consult feedback from end user, avoid potential problem and solve fault in time.
