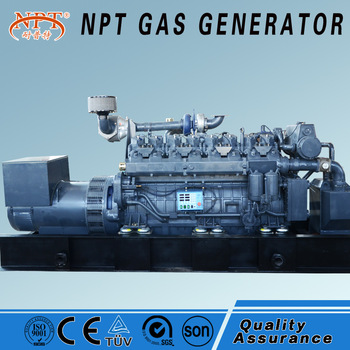

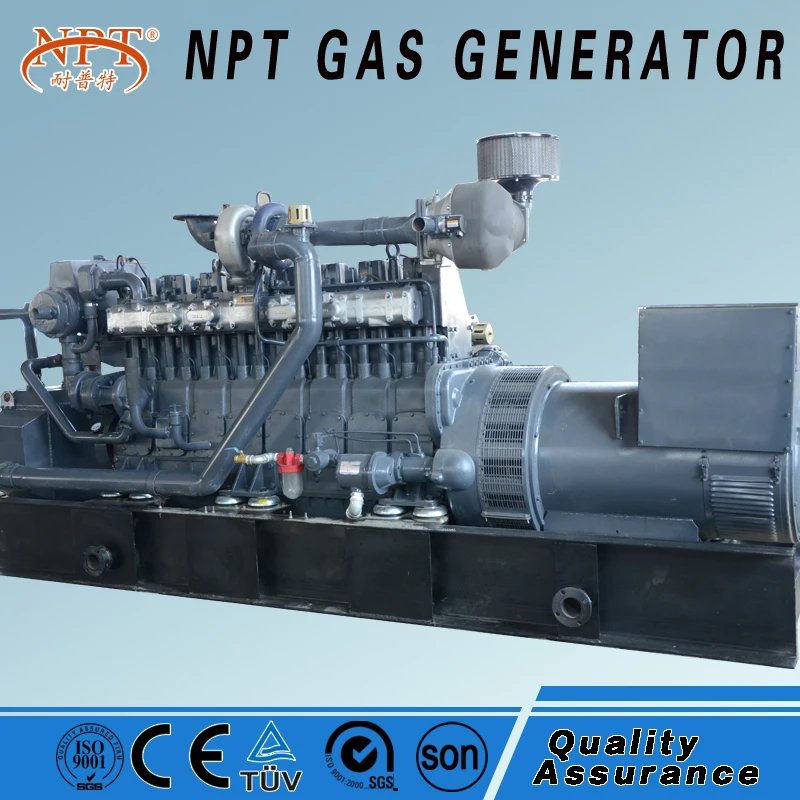

Customized silent 700 kw gas generator price

Customized silent 700 kw gas generator price

Price:

US 250000-270000 / Set

Min.Order Quantity:

1 Set/Sets

Supply Ability:

100 Set/Sets per Month

Port:

Qingdao

Place of Origin:

Shandong, China (Mainland)

Payment Terms:

L/C,T/T,Western Union

Brand:

NPT

Products Model:

700 GFT-J

Products Details
Company Profile

Quick Details

Brand Name: NPT

Model Number: 700 GFT-J

Place of Origin: Shandong, China (Mainland)
Output Type: AC Three Phase
Speed: 1500rpm
Frequency: 50Hz
Rated Power: 700 kW
Rated Voltage: 440V/230V
Rated Current: 1440A
Product name: Customized silent 700 kw gas generator price
Overall dimension (L x W x H)(mm): 5450*2250*3050mm
Gross Weight: 8400kg
Fuel type: Biomass
Rated power: 700kW/1000kVA
Alternator: MBH( Germany)
Basics electric parameter: 50Hz,3 p 4 w,440V/230V
Certificate: ISO | CE
Warranty: 1 Year
Engine model: NY792D88TL-2

Packaging & Delivery

Packaging Details: 1 Piece /plywood cases or simple packing
Delivery Detail: 25 days after 30% deposit received

Specifications

Product Description

Product name	Customized silent 700 kw gas generator price
Model	700GFT-J
Rated power	700kW/1000kVA
Rated speed	1500rpm
Power factor	Lag0.8
Protection Class	IP23
Gross Weight	8400kg
Dimension(LWH)	545022503050mm
Basics electric parameter	50Hz,3 p 4 w,440V/230V

Benefits

The raw material used are rice husk, wheat husk, wood bricks, wood saw and other dried agricultural waste.
This technology helps in tapping Biomass energy which otherwise goes unused in the atmosphere and increases global warming.
The final output of Biomass is an environment friendly gas as it has very low content of sulphur dioxide and nitrogen oxide with almost negligible carbon dioxide.
It is 100% replacement to the local Electricity bill and Diesel Generators.
No dependency on external factors such as electricity failure/shortage in fuel (diesel), etc.
This decentralized mode of electricity generation helps in reducing the burden on the state power grid and also contributes in power transportation saving.
The heat coming out from the exhaust is carbon less and is around 400-650 degree Celsius, which can be easily used for indirect heating purposes and can also add to the savings.

Detailed Images

Gas Engine
Model	NY792D88TL-2
Type	V type 4 stroke, electric control ignition, pre-mixed stoichiometryburn
Rated power	880kW
Rated Speed	1500rpm
Speed regulation	Electronic governor
Cylinder Qty	12
Bore*Stroke	200*210mm
Displacement	79.2L
Fuel gas type	Biomass
Fuel gas intake pressure	2kPa--50kPa

Control panel
L-L&L-N voltage	Speed and running hours
load current	Engine oil temperature
Frequency	Engine oil pressure
Load power	Coolant temperature

Alternator
Model	XN6F
Brand	MBH( Germany)
Rated Power	800kW/1000kVA
Rated current	1440A
Rated Frequency	50Hz
Rated output	440V/230V
Exciting Mode	Self-Excited,Brushless
Voltage Regulation	AVR

Our Service

Pre-sale

Provide specification parameter and consultants service,customized design optional.

After-sale

Installation guide and commissioning service .

Technical support and spare parts supplying.

Operation and maintenance manual.

Tracking

Regularly consult feedback from end user, avoid potential problem and solve fault in time.
