centrifugal brushless DC motor low power consumption air cooler

centrifugal brushless DC motor low power consumption air cooler

FOB Price:

US 1-1000 / Unit

Min.Order Quantity:

1 Unit/Units

Supply Ability:

5000 Unit/Units per Month

Port:

Fuzhou,China

Place of Origin:

Fujian, China (Mainland)

Payment Terms:

L/C,T/T

Brand:

Aolan

Products Model:

AZL18-LX10C

Products Details
Company Profile

Quick Details

Brand Name: Aolan

Model Number: AZL18-LX10C

Place of Origin: Fujian, China (Mainland)
Condition: New
Type: Evaporative Air Cooler
Operating Voltage: 220V
Mounting: Floor Standing
Certification: CE
After-sales Service Provided: Overseas third-party support available
Airflow(m3/h): 18000

Packaging & Delivery

Packaging Details: Loading qty: 20units in 1x20'container, 45units in 1x40'container
Delivery Detail: 15-20 days after placing order

Specifications

Aolan Advantages

Product Description

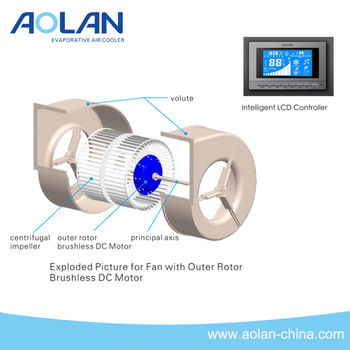

Centrifugal brushless DC motor low power consumption air cooler

Model:AZL18-LS10CZ

Characteristics
1.With single phase,converter and variable speeds,two kinds of air discharge:top and down
2.Using specifically designed centrifugal fan,with high static pressure and long disance of air drive
3.Smooth running,low noise,especially suitable for commercially application house hold
4.Using open-type water distributor,so water can flow smoothly and distributor is not easy to block
5.Using highly efficient cooling pads with large evaporation capacity,good cooling efficiency and easy cleaning
6.With a damper to prevent warm air leakage in winter

Specification

Specification	AZL18-LS10CZ
Airflow (m3/h)	18000
Pressure (Pa)	163
Output(kw)	1.5
Power Resource (V/Hz)	220/50
Rated Currency (A)	9
Fan Type	Centrifugal
Vent size(LxW)(mm)	655*655
Fan Speeds	Inventer,multi-speeds
Noise (dBA)	≤70
Dimension (LxWxH)(mm)	11501150950
Pad size(LxWxH)(mm)	62083075
Net Weight (±3kg)	87
Operation Weight (kg)	117
Intellingt Cleaning	Optional
Water Lack Protection	approval
Controller	LCD
Pre-dust Filter	Optional
Exhaust	Optional
Pre-cooling	Optional
Group-control	Optional
Damper	approval
Tem&hum Control	Optional

Permance Comparison Table
Technical Data	DC Brushless Motor	Traditional AC Motor
Input Power (kw)	1.7	2.2
Output Power(kw)	1.5	1.5
Dimension	Φ240*110mm	Φ170*240mm
Weight	9kg	19kg
Winding Temperature Rise	Low	High
Applied Power Supply	AC200-277V 50/60Hz available	AC220V/50Hz or special order
Control Type	Electronic commutation frequency control	frequency control
Drive Mode	Motor Direct-connected	Belt-driven
Insulation Grade	H	F
IP Grade	IP55	IP23
Characteristic of Speed Regulation	constant	constant

Certifications

Aolan Information

Packaging&Shipping

Aolan (Fujian) Industry Co., Ltd is one of the largest manufacturers of evaporative air coolers in China. As a leader in the field of evaporative cooling, we have played a pioneering role in promoting this environment-friendly application.
As a leader in the field of international evaporative air cooler industry, so far,AOLAN has independently researched and developed hundreds of high-quality, low-energy and environmental-friendly ‘AOLAN’ branded evaporative air coolers in more than 10 series with more than 80 kinds of air cooler, with airflow from 800m3/h to120000m3/h. And they have been used in different fields, including domestic, commercial, industrial areas. ‘AOLAN’ evaporative air coolers have been CE (for UN), SASO (for middle east), BV (France) certified and more, successfully exported to more than 60 countries and areas in Europe, America, Pacific, Middle East, Southeast Asia, Africa, and has become No. 1 in both sales and production volume among the industry in China.
